Refine Sheet hit-test ordering and expand Sheet screenshot test#4505

Open
shai-almog wants to merge 2 commits intomasterfrom
codex/add-special-case-for-sheet-component-events
Open

Refine Sheet hit-test ordering and expand Sheet screenshot test#4505
shai-almog wants to merge 2 commits intomasterfrom
codex/add-special-case-for-sheet-component-events

Conversation

@shai-almog
Copy link
Collaborator

@shai-almog shai-almog commented Feb 9, 2026

Motivation

  • Ensure native peer touch passthrough checks only consult Sheet visibility when a native PeerComponent is involved to minimize overhead and avoid unnecessary EDT interactions.
  • Provide a thread-safe, native-friendly way to determine visible Sheet bounds so native event paths can safely decide whether to deliver touches to peer components.
  • Improve the HelloCodenameOne screenshot test to exercise nested sheets and title-bar commands for better coverage of show/dismiss behavior.

Description

  • Added thread-safe sheet bounds tracking to Sheet with a private SheetBounds type, a volatile sheetBounds array, and helpers updateSheetBounds, removeSheetBounds, startTrackingBounds, stopTrackingBounds, and updateTrackedBounds to maintain a lightweight cache usable off the EDT, and exposed the query Sheet.isSheetVisibleAt(int x, int y).
  • Hooked tracking into the sheet lifecycle by calling startTrackingBounds() during show() and stopTrackingBounds() when a sheet is hidden, and by overriding setX, setY, setWidth, and setHeight to refresh tracked bounds when the sheet moves or resizes.
  • Changed native hit-test ordering to first detect whether the component at the touch location is a PeerComponent and only then consult Sheet.isSheetVisibleAt(...): updated touch logic in Ports/Android/src/com/codename1/impl/android/CodenameOneView.java and Ports/iOSPort/src/com/codename1/impl/ios/IOSImplementation.java to defer sheet checks until a peer is present.
  • Expanded the screenshot test SheetScreenshotTest (added under scripts/hellocodenameone) to create a parent and nested child sheet, add an extra command to the sheet title bar, and register the test in Cn1ssDeviceRunner so the device runner exercises nested sheet behavior.

Testing

  • No automated tests were executed as part of this change in this environment (no CI/build run was requested).

Codex Task

@shai-almog
Copy link
Collaborator Author

shai-almog commented Feb 9, 2026 •
edited
Loading

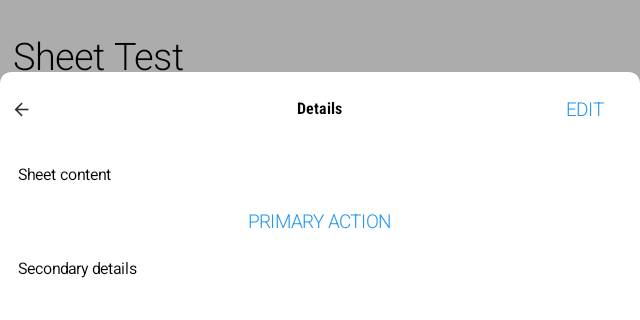

Android screenshot updates

Compared 31 screenshots: 30 matched, 1 missing reference.

  • Sheet — missing reference. Reference screenshot missing at /home/runner/work/CodenameOne/CodenameOne/scripts/android/screenshots/Sheet.png.

    Sheet
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as Sheet.png in workflow artifacts.

Native Android coverage

  • 📊 Line coverage: 7.18% (3643/50732 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
    • Other counters: instruction 5.60% (17907/319512), branch 2.71% (841/31069), complexity 3.33% (988/29695), method 5.86% (811/13829), class 9.58% (175/1826)
    • Lowest covered classes
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
      • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
      • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
      • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/712 lines covered)
      • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
      • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

@shai-almog
Copy link
Collaborator Author

shai-almog commented Feb 9, 2026 •
edited
Loading

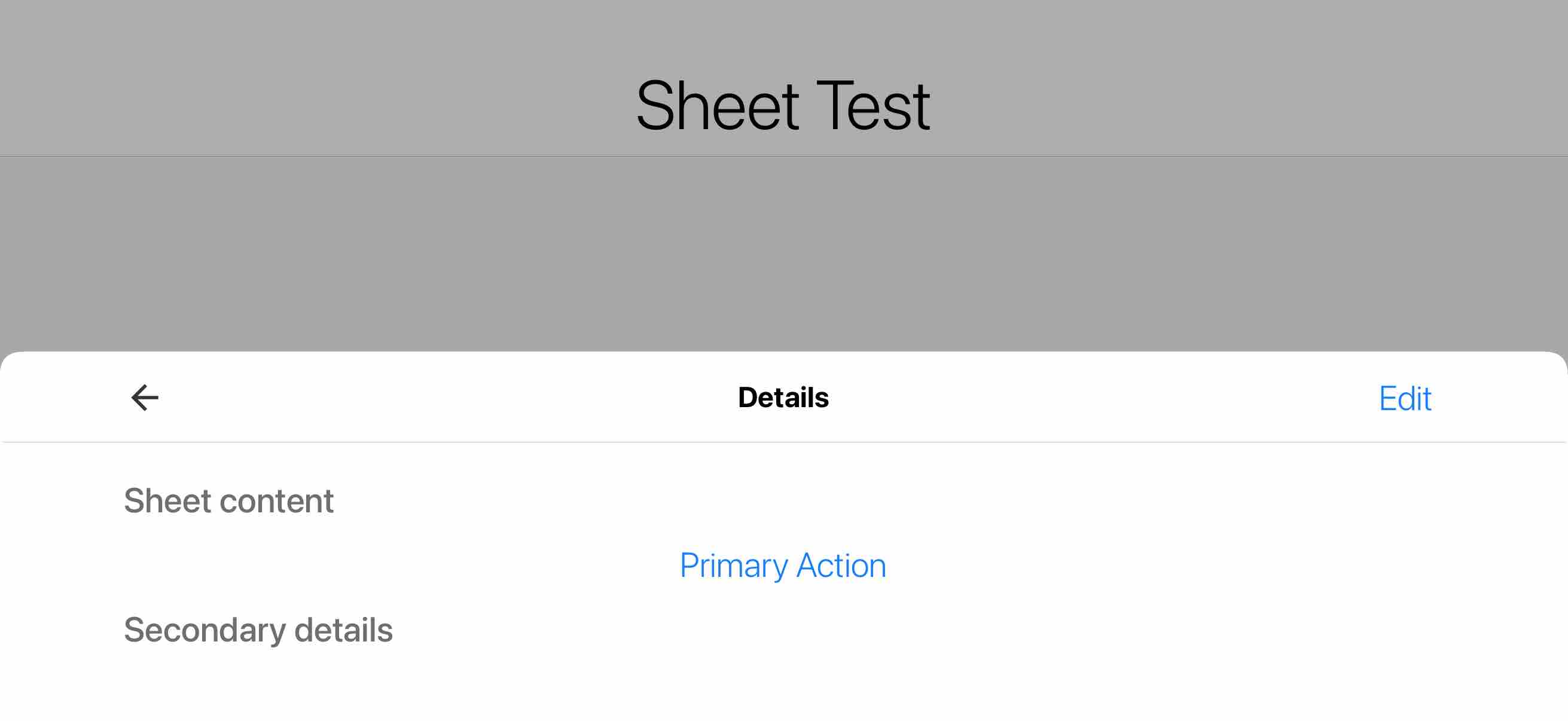

iOS screenshot updates

Compared 31 screenshots: 30 matched, 1 missing reference.

  • Sheet — missing reference. Reference screenshot missing at /Users/runner/work/CodenameOne/CodenameOne/scripts/ios/screenshots/Sheet.png.

    Sheet
    Preview info: Preview provided by instrumentation.
    Full-resolution PNG saved as Sheet.png in workflow artifacts.

Benchmark Results

  • VM Translation Time: 401 seconds
  • Compilation Time: 373 seconds

Detailed Performance Metrics

Metric Duration
Build Time Statistics
Setup & Unzip 40526 ms
Extract Extensions 34 ms
Google Services Setup 9 ms
Scan Classes 955 ms
Extract Libs 1922 ms
Inject Build Hints 73 ms
Generate Unit Tests 8 ms
Generate Stubs 1756 ms
Compile Stubs 3750 ms
Generate Icons 2272 ms
Prepare ParparVM 927 ms
ParparVM Execution 216454 ms
Post-VM Setup 290 ms
CocoaPods 8276 ms
Finalize 126 ms
Total Time 277381 msMaven Overhead : 124000 ms
CocoaPods Install (Script) 1000 ms
Simulator Boot 317000 ms
Simulator Boot (Run) 5000 ms
App Install 18000 ms
App Launch 13000 ms
Test Execution 208000 ms

@github-actions
Copy link

github-actions bot commented Feb 9, 2026

✅ Continuous Quality Report

Test & Coverage

Static Analysis

Generated automatically by the PR CI workflow.
